Introduction

HAPI FHIR is an open source implementation of the HL7 FHIR standard for healthcare interoperability.

The easiest way to get started with HAPI FHIR is to use the HAPI FHIR JPA Server Starter Project.

In previous posts, we have worked to augment the HAPI FHIR JPA Server Starter Project in order to demonstrate secure access to FHIR resources.

Including:

  • Support for OpenID Connect and OAuth 2.0 (e.g., SMART on FHIR)

See: HAPI FHIR AU Starter Project

In this post, we'll enable TLS in HAPI FHIR's embedded web server and ensure that all PostgreSQL clients use encrypted connections.

HAPI FHIR

Enable TLS

HAPI FHIR relies on the underlying web server for TLS encryption.

All embedded web servers supported by Spring Boot can be configured to secure connections with TLS (SSL) by using the server.ssl.* properties.

For example:

services:

  hapi-fhir:
    container_name: hapi-fhir
    build:
      context: ./services/hapi-fhir
      dockerfile: Dockerfile
    restart: unless-stopped
    ports:
      - 6443:8443
    environment:
      SERVER_SSL_ENABLED: true
      SERVER_SSL_KEY_STORE_TYPE: PKCS12
      SERVER_SSL_KEY_STORE: file:/keystore/keystore.p12
      SERVER_SSL_KEY_STORE_PASSWORD: secret
      SERVER_SSL_KEY_ALIAS: tomcat
      SERVER_PORT: 8443
      SPRING_DATASOURCE_URL: jdbc:postgresql://postgres:5432/${HAPI_FHIR_DB}
      SPRING_DATASOURCE_USERNAME: ${POSTGRES_USER}
      SPRING_DATASOURCE_PASSWORD: ${POSTGRES_PASSWORD}
      SPRING_DATASOURCE_DRIVER_CLASS_NAME: org.postgresql.Driver
      SPRING_JPA_PROPERTIES_HIBERNATE_DIALECT: ca.uhn.fhir.jpa.model.dialect.HapiFhirPostgresDialect
      SPRING_JPA_PROPERTIES_SEARCH_ENABLED: false
    env_file:
      - ./.env
    volumes:
      - '${PWD}/certs/keystore.p12:/keystore/keystore.p12'
    configs:
      - source: hapi
        target: /app/config/application.yaml
    depends_on:
      postgres:
        condition: service_healthy
      keycloak.au.localhost:
        condition: service_healthy
    networks:
      - hapi_fhir_network

  ...

configs:
  hapi:
    file: ./hapi.application-enable-tls.yaml

See: docker-compose.yml

Access to a keystore file containing the server certificate and private key is also required. You can use openssl to create a PKCS12 keystore.

For example:

openssl pkcs12 -export -in cert.pem -inkey key.pem -out keystore.p12 -name tomcat -password pass:secret

PostgreSQL

Enable TLS

Support for encrypted connections is enabled by setting the ssl parameter to on. The server will listen for both normal and secure connections on the same port.

Connecting clients can be required to use encrypted connections by setting the environment variable PGSSLMODE to require.

For example:

services:

  postgres:
    container_name: postgres

    ...

    command: >
      -c ssl=on
      -c ssl_cert_file=/var/lib/postgresql/server.crt
      -c ssl_key_file=/var/lib/postgresql/server.key
    environment:
      POSTGRES_DB: ${POSTGRES_DB}
      POSTGRES_USER: ${POSTGRES_USER}
      POSTGRES_PASSWORD: ${POSTGRES_PASSWORD}
      PGSSLMODE: require
    env_file:
      - ./.env
    volumes:
      - '${PWD}/certs/cert.pem:/var/lib/postgresql/server.crt'
      - '${PWD}/certs/key.pem:/var/lib/postgresql/server.key'
      - postgres_data:/var/lib/postgresql/data

    ...

PostgreSQL also requires access to the files containing the server certificate and private key.

Note: On Unix and macOS systems the cert and key file permissions must disallow any access to world or group.

For example:

sudo chmod 600 *.pem

We can check that the connections to PostgreSQL are secure by running the following query:

select pg_ssl.pid, pg_ssl.ssl, pg_ssl.version,
       pg_sa.backend_type, pg_sa.usename, pg_sa.client_addr
       from pg_stat_ssl pg_ssl
       join pg_stat_activity pg_sa
       on pg_ssl.pid = pg_sa.pid;

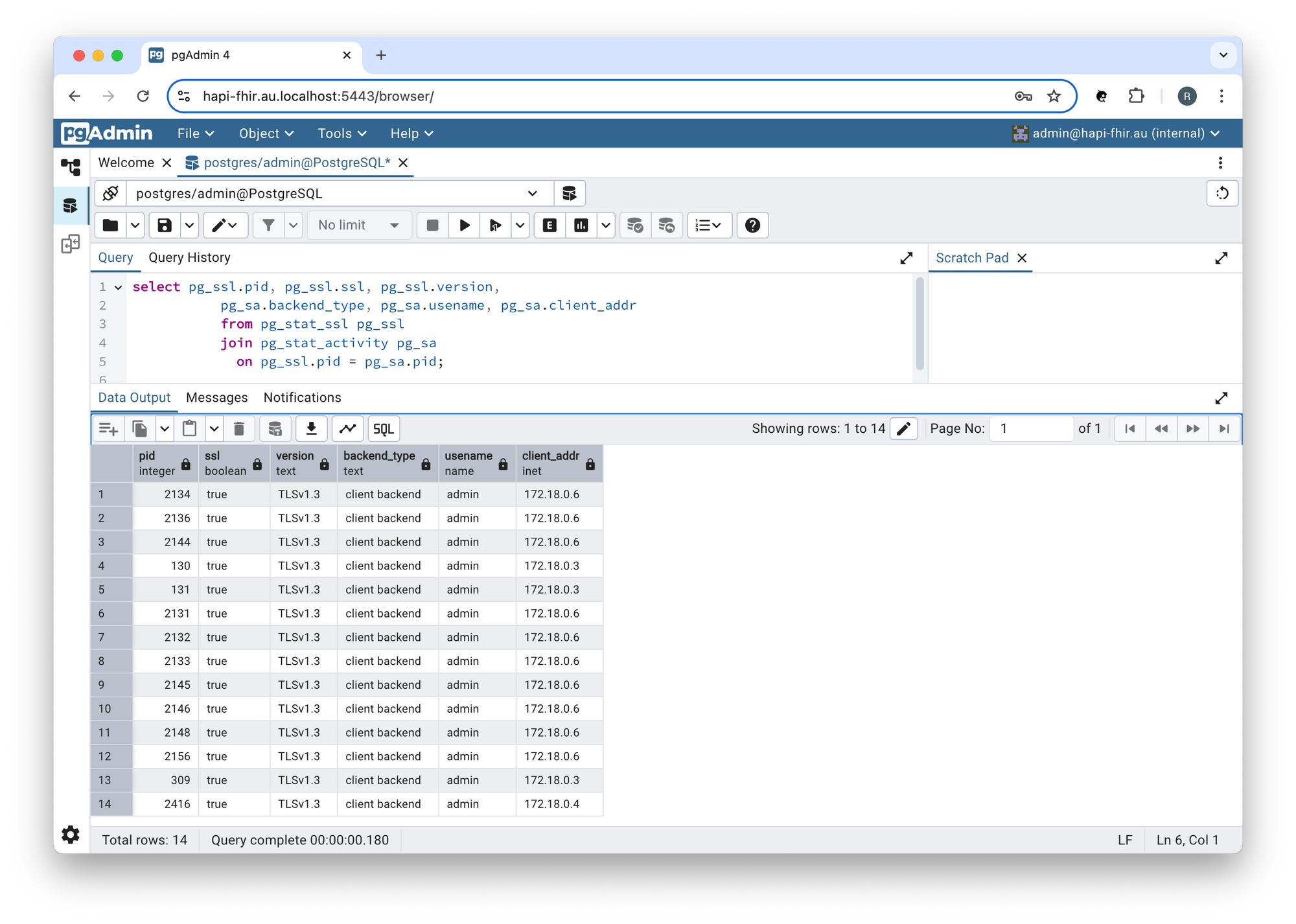

In pgAdmin:

We can obtain HAPI FHIR's IP Address using the following command:

docker inspect -f '{{range .NetworkSettings.Networks}}{{.IPAddress}}{{end}}' hapi-fhir

You should see something like:

172.18.0.6
